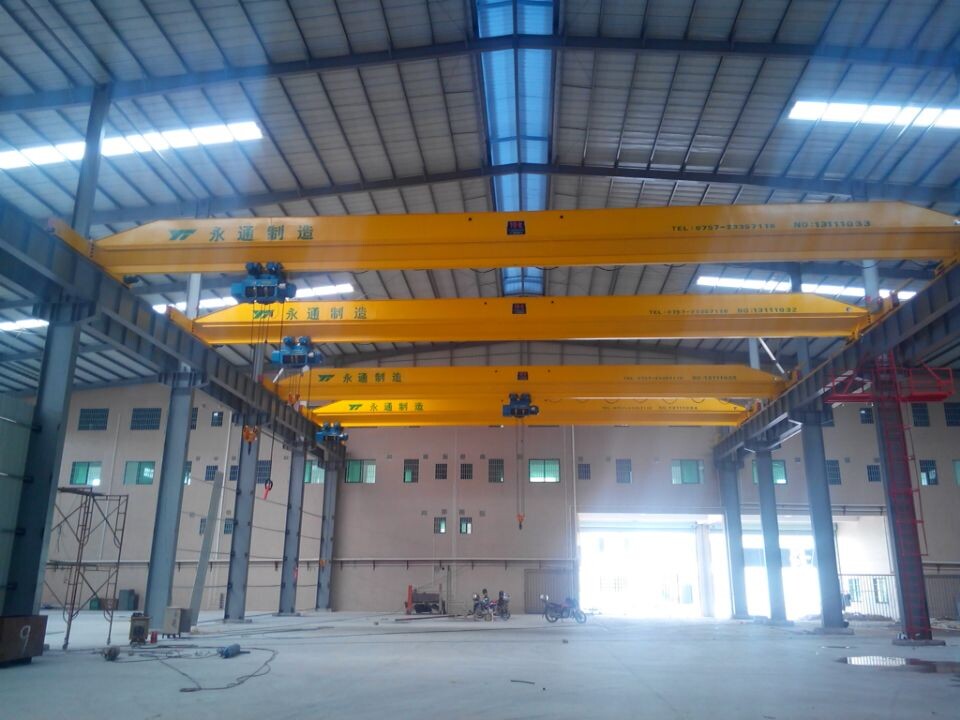

LDA electric single-beam crane has the characteristics of reasonable structure and strong rigidity of the whole machine. The main beam adopts I-steel box structure, which is used together with CD and MD electric hoists. It is a light and small lifting machine. This product is widely used for lifting goods in factories, warehouses, stockyards and other places. It is prohibited to use it in flammable, explosive and corrosive media.



This product has two operation modes: ground and control room. There are two types of operating room: open type and closed type, which can be divided into left or right side installation according to the actual situation. The entrance direction has two types of side and end face to meet the user's choice under different needs.



LDA electric single-beam crane is composed of bridge, crane traveling mechanism, trolley and electrical equipment. The bridge is of box-shaped welded structure, and the crane traveling mechanism is driven separately. Crane operation includes ground operation, remote control operation and cab operation, which are optional when ordering. The conductive form of the crane is divided into two types: cable and sliding contact wire, which can be selected when ordering. When selecting this crane, it is necessary to fill in the order specification form, and indicate the minimum and maximum temperature of the working environment and power supply when using.





LDA electric single-beam crane environmental conditions:



1. The power supply of the crane is three-phase AC, 380V, 50Hz;



2. Working level of crane: A3~A5;



3. Working environment temperature of crane: - 20 ℃~+40 ℃;



4. When ordering or signing a contract, the crane must clearly describe its basic parameters (rated lifting capacity, lifting height, effective radius, etc.) so as to provide products that meet the working conditions and requirements.
